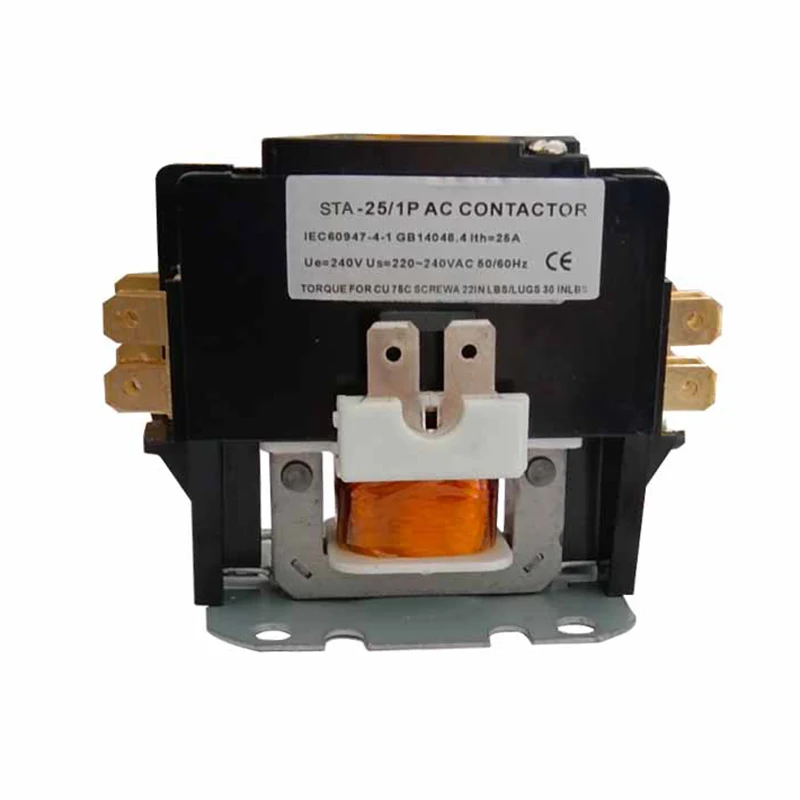

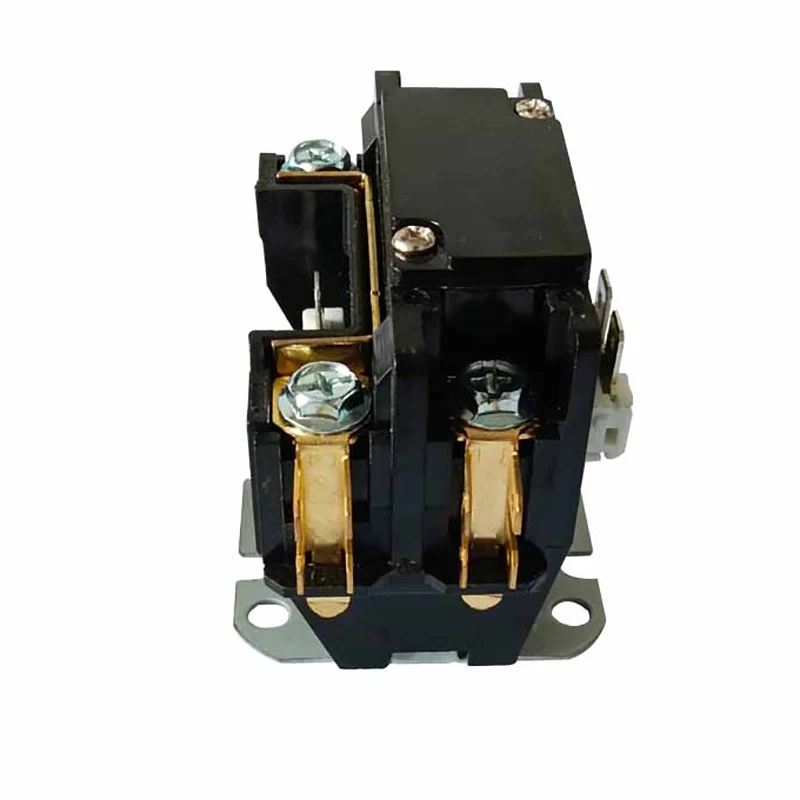

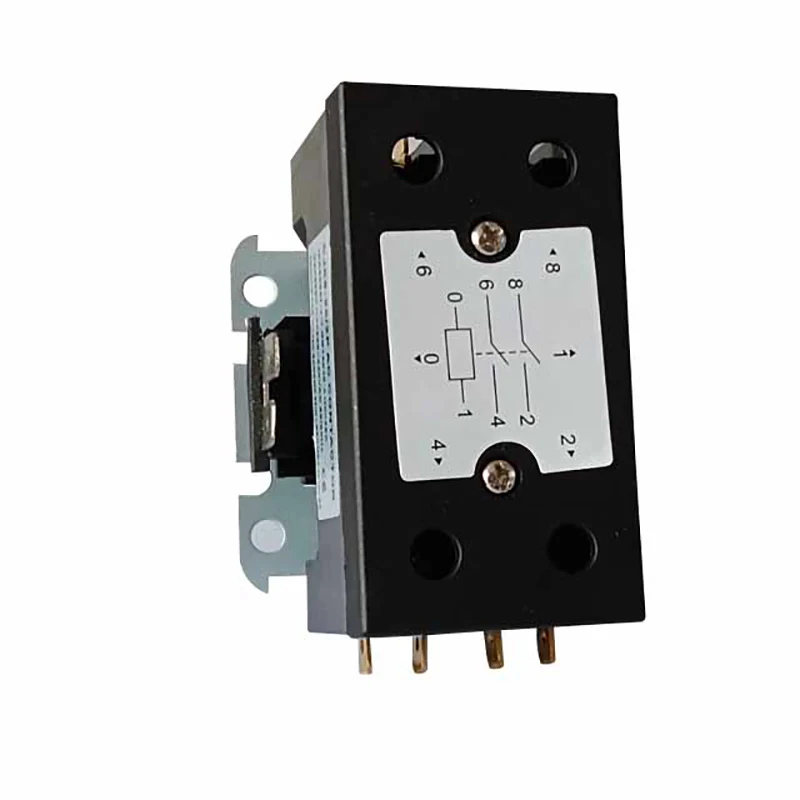

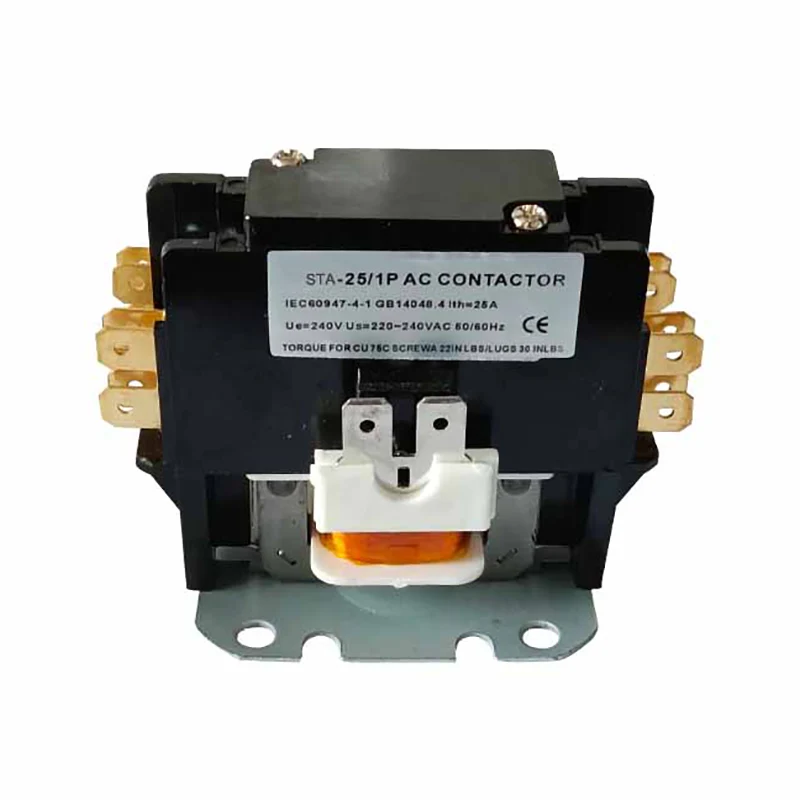

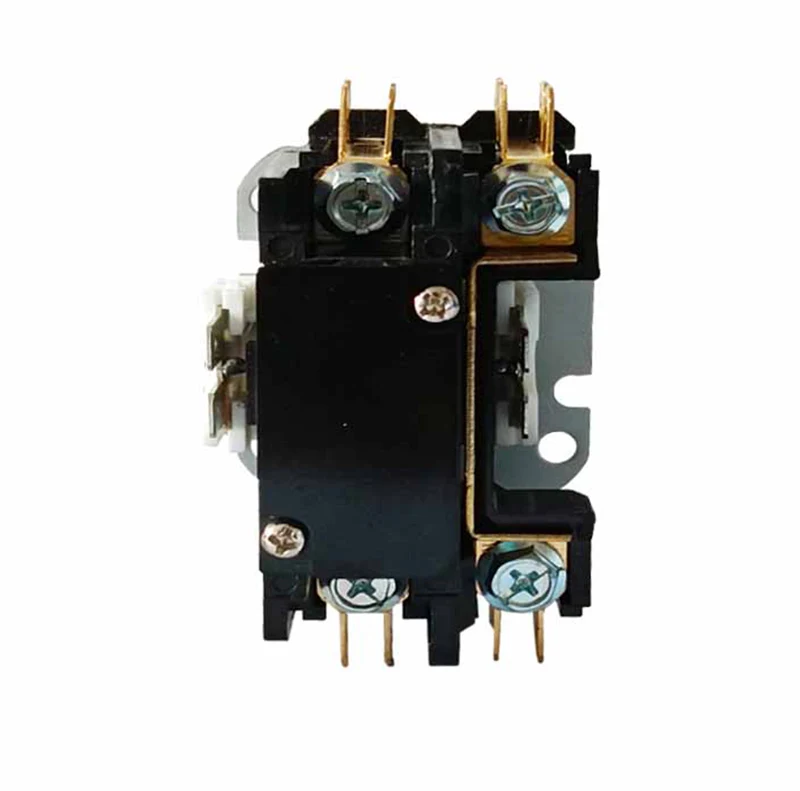

1.5p 25a AB AC Conditioning Contactor
1.5p 25A AC AC Conditioning Contactores sunt determinatum ad propositum actoribus sunt disposito usum in REFRIGERATIO, aer condiciones et electrica calefacit systensibus. Virtus hospites potest fieri cum aut stupra terminales cum velox connectit et Lug terminals cum velox connectit Et propinquos meos Iec60947-4-1
Mitte Inquisitionem
depictio producti
| Exemplar non | Plenus | Resistentia amps (a) | Poli No. | Voltage Coil ( V) | Versus voltage (V) | Max HP | - | |
| Amps (a) | L / 60Hz | Voltage (V) | Unius Phase | Trium Phase | ||||
| CJX9-20 / I | 20 | 30 | 1 | 24 | 240/277 | 120 | 1.5 | - |
| CJX9-20 / 1.5 | 1.5 | |||||||
| CJX9-20 / II | 2 | |||||||
| CJX9-20 / III | 3 | 120 | 480 | 240/270 | 3 | 7.5 | ||
| CJX9-20 / IV | 4 | 208/240 | 600 | 480/600 | - | 7.5 | ||
| CJX9-25 / 1.5 | 25 | 35 | 1.5 | 24 | 240/277 | 120 | 2 | - |
| CJX9-25 / II | 2 | |||||||
| CJX9-25 / III | 3 | 120 | 480 | 240/270 | 5 | 7.5 | ||
| CJX9-25 / IV | 4 | 208/240 | 600 | 480/600 | - | 15/20 | ||
| CJX9-30 / 1.5 | 30 | 40 | 1.5 | 24 | 240/277 | 120 | 2 | - |
| CJX9-30 / II | 2 | 120 | 480 | 240/270 | 5 | 10 | ||
| CJX9-30 / III | 3 | 208/240 | 600 | 480/600 | - | 15/20 | ||
| CJX9-30 / IV | 4 | |||||||
| CJX9-40 / II | 40 | 50 | 2 | 24 | 240/277 | 120 | 3 | - |
| CJX9-40 / III | 40 | 50 | 3 | 120 | 480 | 240/270 | 7.5 | 10 |
| CJX9-40 / IV | 40 | 50 | 4 | 208/240 | 600 | 480/600 | - | 15/20 |
| CJX9-50 / II | 50 | 60 | 2 | 24 | 240/277 | 120 | 3 | - |
| CJX9-50 / III | 50 | 60 | 3 | 120 | 480 | 240/270 | 10 | 15 |
| CJX9-50 / IV | 50 | 60 | 4 | 208/240 | 600 | 480/600 | - | 25/25 |
| CJX9-60 / II | 60 | 70 | 2 | 24 | 240/277 | 120 | 5 | - |
| CJX9-60 / III | 60 | 740 | 3 | 120 | 480 | 240/270 | 10 | 20 |
| CJX9-60 / IV | 60 | 70 | 4 | 208/240 | 600 | 480/600 | - | 30/30 |
| CJX9-75 / II | 75 | 85 | 2 | 24 | 240/277 | 120 | 5 | - |
| CJX9-75 / III | 75 | 85 | 3 | 120 | 480 | 240/270 | 15 | 25 |
| CJX9-75 / IV | 75 | 85 | 4 | 208/240 | 600 | 480/600 | - | 40/40 |
| CJX9-90 / II | 90 | 100 | 2 | 24 | 240/277 | 120 | 7.5 | - |
| CJX9-90 / III | 90 | 100 | 3 | 120 | 480 | 240/270 | 20 | 30 |
| CJX9-90 / IV | 90 | 100 | 4 | 208/240 | 600 | 480/600 | - | 50/50 |
|
Materia insulating |
Contact obstructionum et carrier sunt alta species Electrical-gradu Thermosetting resina |
|
Temperature range |
-40 ° F CL ° F; -5- + XL |
|
Mechanica vitae (non onus) |
Conformis Ul et Ari Specifications Latin |
|
Electricl vitae |
ARI et ARI ad ARI SPECIES Vexillum |
|
Pondus (proximus) |
9,25 Oz |
|
Coils frequency |
L / 60hz |
|
Coil Nulla |
Class B (130ºC) |
|
Finis |
Pressura COPULATIO et duplex 1/4 Q.C |
|
Agito |
LXXXV% of Nominis coltage; CX% maximum tutum agito |
|
Officium cycle |
Continua |
Principium operandi
Cum in coil de 1.5p 25p aer AC condicionibus contactor est energized, ferrum core fit magnetica et attrahit contactus ratio ad proxima, ita connectens electrica onus ad virtutem. Cum in plano est de-energizing, ferrum core perdidit eius magnetism et contactus ratio est separata a vere, ita disconnecting in onus ex virtute fonte. Et hoc modo, in contactor permittit remotis imperium electrica onus.
Definitis ad Contactor Application:
• CJX9 (vel STA) Series Aeris Condition of AC Contacttor est maxime applicabiles ad lineam AC 50Hz et 60Hz, rated in Voltage est 240v et rated opus current usque ad lineam
• Aeris Conditioner contactores sunt determinatam proposito ac contactor sunt disposito usum in REFRIGERATIO, aer condiciones et electrica calefacit systens.
• Power hospites potest esse cum aut stupra terminales cum velox connectit et Lug terminals cum velox connectit
• Et propinquos meos Iec60947-4-1
Structuram et features
Structuram:
Electromagnetic system: inter coil, core et alia components, solebat generare magnetica flux ad eiciam ostium et claudendo de contactus ratio.
Contact System: inter contactus et auxiliaris contactus, pelagus contactus est ad portare princeps current, et auxiliaris contactus est ad animadverto in transmissione et feedback of imperium signum.
Arcus exstinguendo fabrica, solebat exstinguere arcus generatae cum contactus est disiungitur ut custodiat contactus a damnum.
Crusta: solebat praesidio internum components ex externo environment, dum providente æstus dissipatio.
Features:
Et bene defined proposito et specifica consilio ad propria potentia systems et onus types.
In contactu ratio est fabricari ab alta qualis materiae cum bono electrica conductivity et gerunt resistentia.
Et electromagnetic ratio habet sufficiens suctu vi ad firmamentissimo et dimittis in contactus.
Arcus exstinguendo fabrica potest efficaciter exstinguere arcus et protegat contactus a damnum.
Crusta est rationabiliter disposito satis viribus et æstus dissipatio perficientur.
