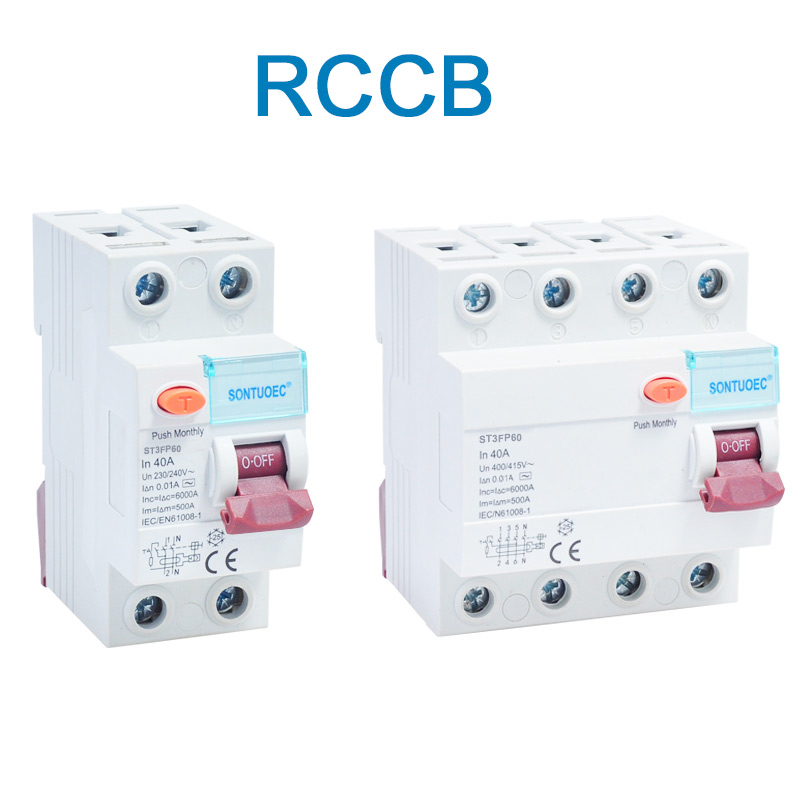

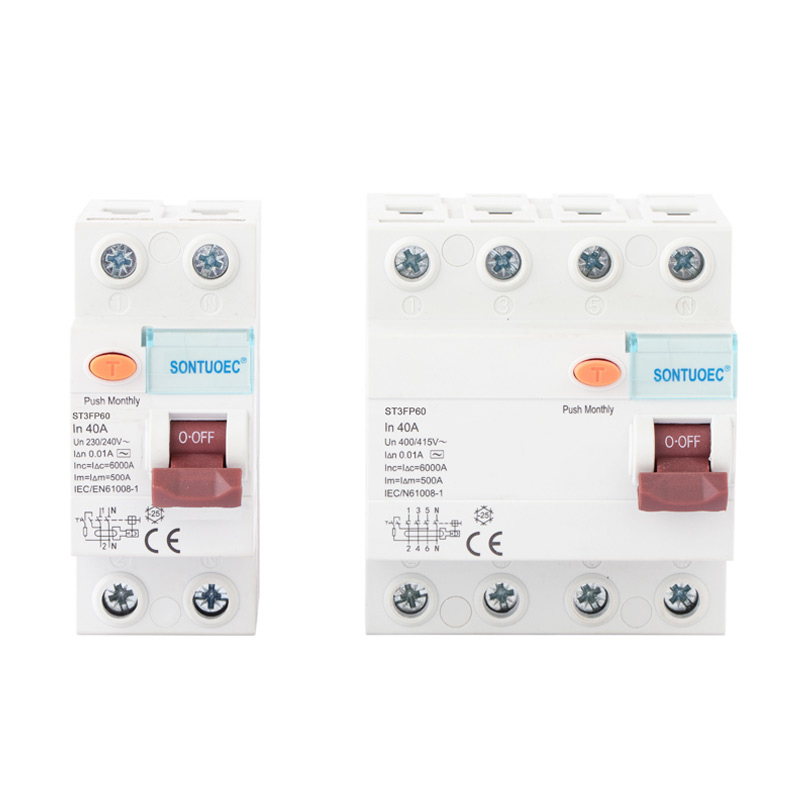

4P 4p / 10MA RESIDUUS CRUSCRES Breaker

4p 4p 40a / 10MA RESIDUUS CIRCRESCENS ruptor est a RELICTUM current Circuit ruptor cum IV vectes (i.e., III-phase et non est in circuitu automatice cutem in circuitus ad X milliamps. In fabrica maxime solebat ne electrica ignes et electrocution accidentia et tutela personalis et apparatu salus.

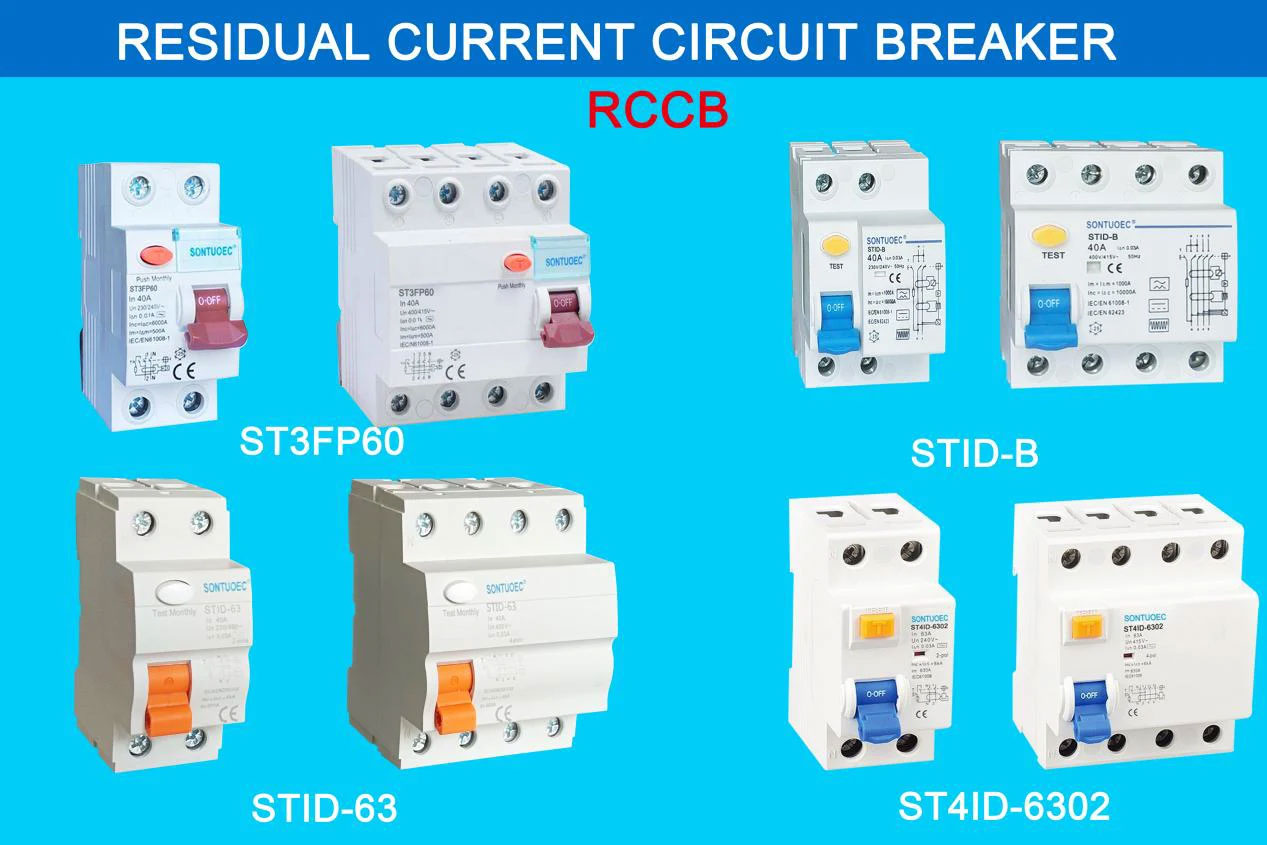

Model:ST3FP60

Mitte Inquisitionem

depictio producti

Model:	St3fp60
Vexillum	Iec61008-1
RELICTUM current characteres:	Et,
Polus nulla.:	2p, 4p
Rated Current:	16a, 25a, 32a, 40a, 63a;
Rated voltage:	CCXXX / AC 400V
Rated Frequency:	L / 60hz
Rated RESIDUUS Operating Current IMP:	10Ma, 30ma, 100ma, 300MA, 500ma
Rated RELICTUM non-operating current ego δno:	≤0.5iΔn
Rated Conditionalis Short-Circuit Current Inc:	6000a
Rating conditionalis RELICTUM brevis-circuitu Current iδc:	6000a
Tripping Duration:	Instantaneous Tripping≤0.1SEC
RELICTUM Tripping Current Range:	~ 0.5iΔn iΔn
Electro-Mechanica patientia:	(IV) CYCLES
Fligening Torque:	2.0nm

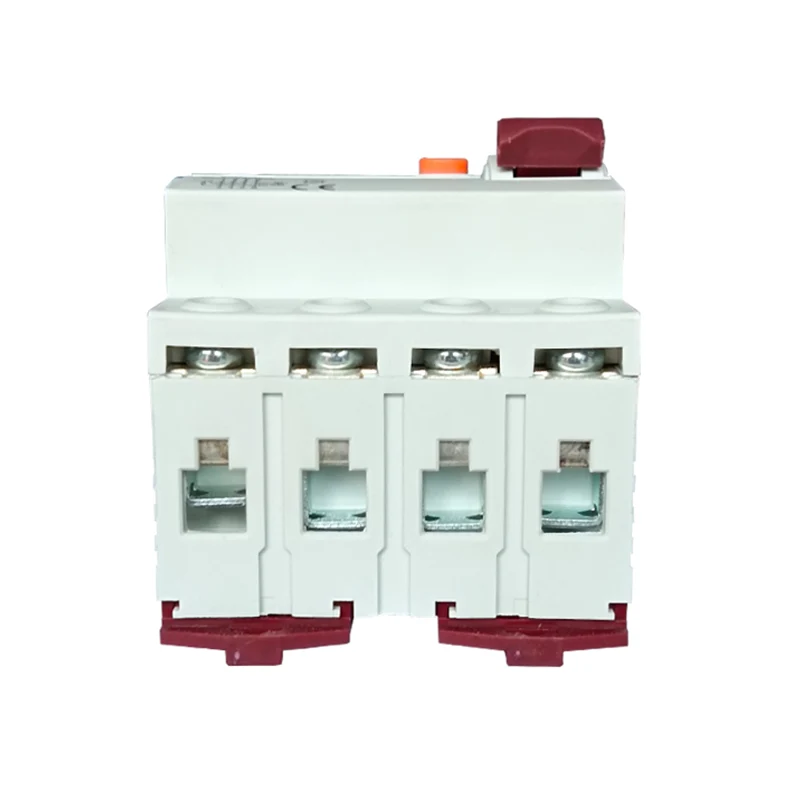

Connection Terminal:	Cochlea terminatio columna terminatio cum Fibulae
Installation:	35MM Laudate rail ascendens

Principium operandi

Quod operating principium huius circuitus ruptor est fundatur in current statera principium. Sub normalis condiciones, in excursus intrantes relinquens circuitus aequalis linea transeat per onus. Tamen, cum sit culpa est culpa in linea vel cum homo venit in contactus cum circuitu, hoc potest ducere ad current leakage, faciens excursus in et de circuitu unalanced. In isto puncto, in current transformator interius in circuitu ruptor non deprehendere hoc unbalanced current et convertat eam in electrica signum. In electronic circuitus erit amplificare, componere et processum hoc signum, et cum signo usque ad limina, i.e., cum RELICTUM current pervenit vel excedit X milliaps, circuitus rupto cito interficiam off circuitu.

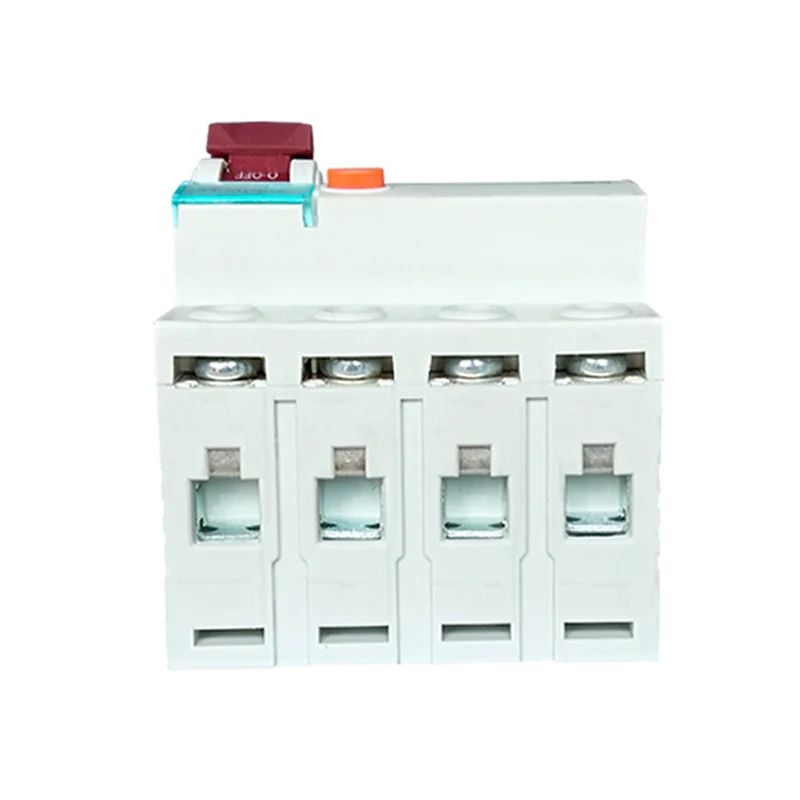

4P 40A/10mA Residual Current Circuit Breaker

Principalis features

High sensibility: potest deprehendere minima leakage current (X M) et interficiam off in circuitu in tempore ne electrica ignes et electrica inpulsa accidentia.

Fast responsio: Cum autem Leakage current deprehenditur, in circuitu ruptor et interficiam de circuitu in brevi (plerumque intra decem milliseconds).

Versatility: Insuper ad basic lacus praesidium munus, in circuitu Breaker potest etiam in overload et brevis-circuitu tutela munera.

Securus install et ponere solet adoptat modularied consilium quod facile install et Dismantle. Interea et simplex internum structuram facit facile ponere et overhaul.
