2p rcbo b type

2p RCBO B type est a duobus RELICTUM current Circuit Breaker cum overcurrent praesidium (RELICTUM current Circuit Breaker cum ONERO PRAESENTATUS), potest control in-off de igne linea 2p (l3) et nulla linea (n) simul. A type "plerumque refers to a specifica genus vel specificationem de circuitu ruptor, quae potest involvere operating characteres, rated current, rated voltage et alia parametri de circuitu rared.

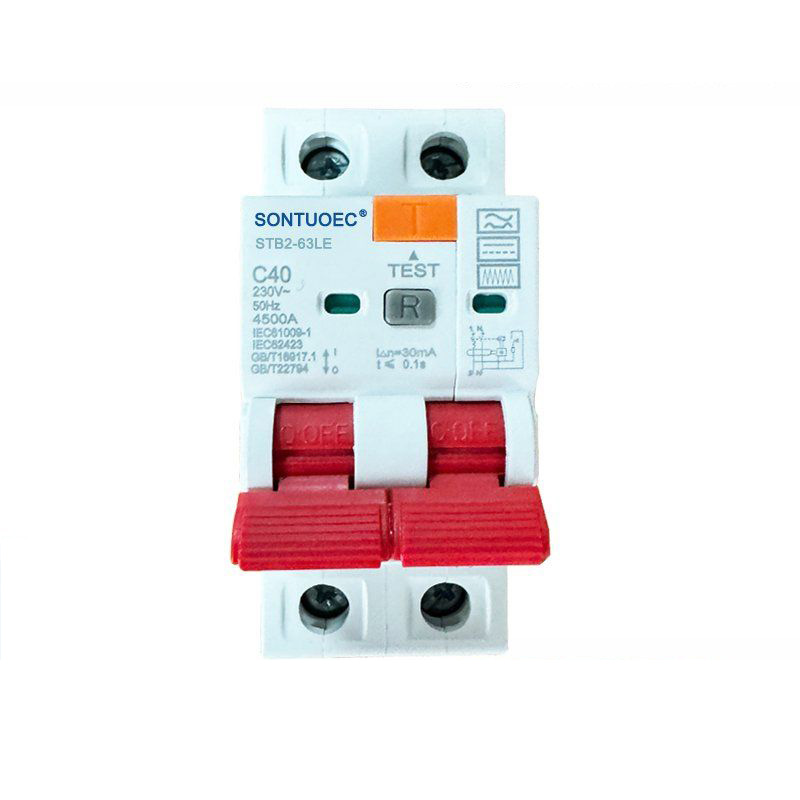

Model:STB2-63LE

Mitte Inquisitionem

depictio producti

	Vexillum	Unitas	IEC / en 61009-1 et IEC / en62423
Electrica features	Modus		Electronic type
	Typus (fluctus forma terrae Leakage Sensed)		B
	Thermo-magnetica release proprium		B, c, d
	Rated Current LN	A	6,10,16,20,25,32,40; 63,80a
	Polos	P	1p + n, 3p + n
	Rated voltage ue	V	PC CCXXX, CD
	Rated sensibilitate i △ n	A	0,01, 0.03, 0,1, 0.3, 0.5
	Rated RELICTUM faciens et praevaricationem Capacitas l △ m	A	500
	Rated Short-circuitu facultatem icn	A	6000
	Conteram tempore sub i △ n	S	≤0.1
	Rated frequency	HZ	50/60
	Rated improkwithstand voltage (1.2 / L) uimp	V	4000
	Dielectric test voltage ad IND.FREQ for 1min	KV	2
	Voltage UI	V	250
	Pollutio		2
Mechanica features	Electrica vitae		4000
	Mechanica vitae		10000
	Culpa Current indicator		Sic
	Praesidium gradus		Ip20
	Ambientium temperatus (Cum cotidie average35ºC)	ºC	-5 ~ + XL (specialis applicationem placere ad Temperature recompendationi)
	Storage temperatus	ºC	-25 ~ + LXX
Installation	Terminal Connection Type		Funem / pin-genus busbar / U-type Busbar
	Terminatio mole summo / imo est funiculus	mm2	25
	Terminatio mole summo / imo est funiculus	AWG	18-5
	Terminatio mole summo / imo est Busbar	mm2	25
	Terminatio mole summo / imo est Busbar	AWG	18-3
	Adscensio		De Laudate Rail en (LX) DCCXV (35mm) per Fast Clip Fabrica
	Nexus		A summo

Principalis features et parametri

Actio characteres: 2p 4p RCBO B type habet a RELICTUM current praesidio munus, cum RELICTUM current (i.e. Leakage current) in circuitus agere cito ad interficiam et electrica perniciosa.

Rated Current: Depending on the specific model and specifications, the rated current range of 2P 4P RCBO B Type may vary, but usually includes a wide range of specifications such as 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A,and so on.

Rated voltage: et 2p 4p rcbo b genus est typically rated ad 240v ac pro domesticis et commercial electrica ambitus.

Rated Frequency: rated frequency huius circuitus ruptor plerumque L / 60Hz, quae aequet frequentiam virtutis copia in summa regionibus et regionibus.

Rated Short Circuit facultatem: 2p 4p RCBO B genus habet altum rated brevi circuitu facultatem, ut 6ka vel 10ka, quae non potest sustinere magna current sine damnum in eventu de brevi Current.

Leakage Factum Current: Quod Leakage Factum Certe Circuit Circuit solet 30ma vel minus, quod obvium haberet requiruntur ad internationalis electrotechnical commissione (IEC) et pertinet in nationalibus signa, et non potest efficaciter praesidio personalis salutem.

RCBO est maxime in AC 50Hz (60hz), rated voltage CCXXX / 400v, rated current 6a ad 40a humilis voltage terminatio distribution ratio. RCBO aequalis McB + RCD munus; Est usus ad electrica concursu praesidio et humana indirecta contactus praesidium, electrica apparatu praesidium cum humana corpus de electricity vel electrica network Leak current excedit stipulat valorem et super onus et brevi excedat praesidium; Potest etiam esse a non-frequency operator in circuitu, salva usus est in residentialibus et commercial regio. Hoc obsequitur cum vexillum de Iec61009-1.

Applicationem et installation

Application: 2p 4p RCBO B type est idoneam ad tutela potentia distribution circuitus quod eget simultaneous imperium utriusque ignis et zero fila, ut lucendi, in domesticis, commercial, industriae et aliis locis.

Installation: De Circuit Breaker plerumque adoptat symmetriicarum din-rail ascendens vel panel ascendens, quod est convenient ad velox institutionem et remotionem in distribution buxum vel distribution arca.

Wiring: 2p 4p rcbo B type est flexibile in wiring et potest coniungi ad tres-tempus tres filum, tres-tempus quattuor filum aut unum-phase circuitus. Cum wiring, ut ignis, nullus et terra fila sunt proprie connexi vitare periculum electrica inpulsa electrica ignis.
