Electronic Type RCCB

Cum RELICTUM current in circuitu excedit a PRAETERETOR valore, in electronic type RCCB aget celeriter ad interficiam de circuitu, sic ne electrica concursu accidentia et electrica ignes. Electronic RCCBs uti electronic components et microprocessors et alia technologiae providere maioris sensibilitate et accurate.

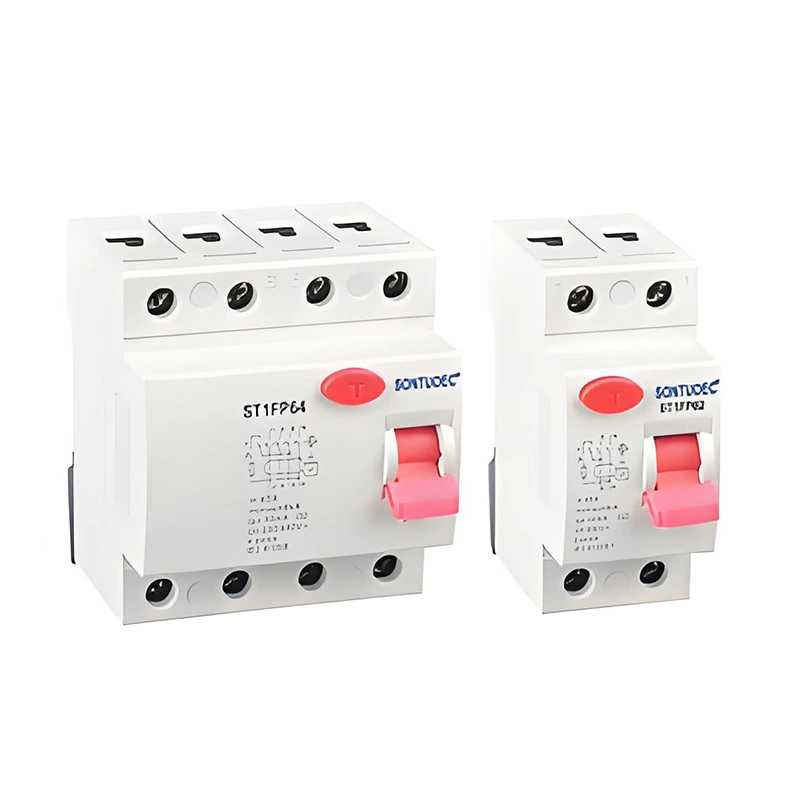

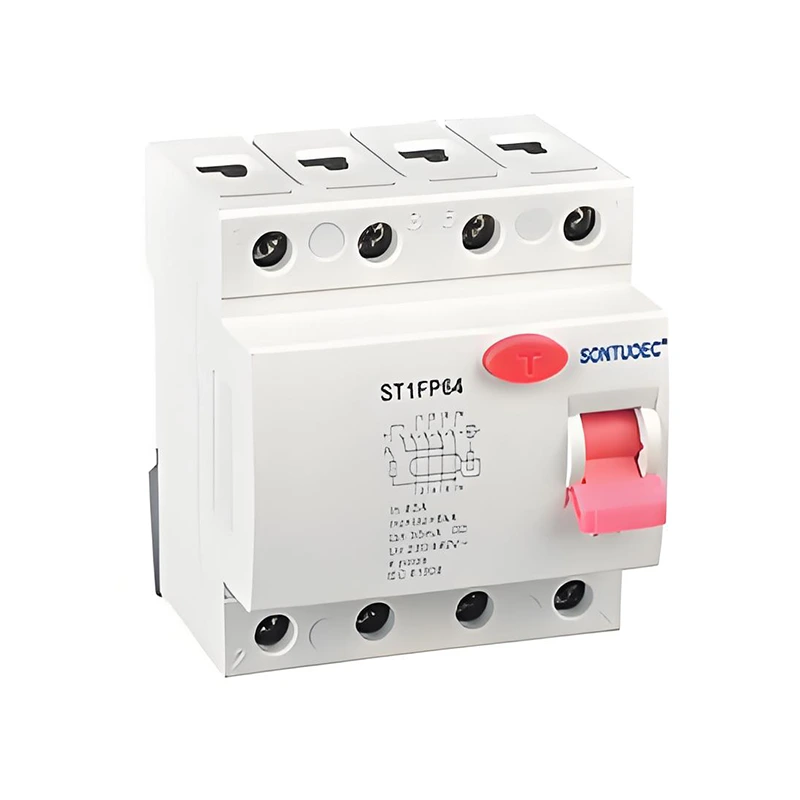

Model:ST1PF64

Mitte Inquisitionem

depictio producti

Sandard			IEC / en61008.1
Electrica	Typus (fluctus forma terrae Leakage Sensed)		Electro, magnetica type, electronic type
features	Rated current in	A	Et,
	Polos	P	2,4
	Rated voltage US	V	AC CCXL / 415v; N CCXXX / 400V
	Current Rated		16,25,32,40,63a
	Rated sensibilitate i △ n	A	0.01,0.03,0.1,0.3,0.5
	Voltage UI	V	500
	Rated RELICTUM faciens et	A	630
	Effrego capacitatem i △ m	A	630
	Short-Circuit current I △	A	6000
	Scpd Fuse	A	6000


	Rated frequency	HZ	50/60
	Pollutio		2
Mechanica	Electrica vitae	t	4000
features	Mechanica vitae	t	10000
	Praesidium gradus		Ip20
	Ambientium temperatus	ºC	-25 ~ + XL
	(Cum cotidie mediocris ≤35ºC)	ºC	-25 ~ + XL
	Storage temperatus	ºC	-25 ~ + LXX
Installation	Terminal Connection Type		Cable / U-genus Busbar / Pin-Type Busbar
	Terminatio mole summo / imo ad funem	mm2	25
	Terminatio mole summo / imo ad funem	AWG	3.18
	Terminatio mole summo / deorsum in Busbar	mm2	25
	Terminatio mole summo / deorsum in Busbar	AWG	3.18
	Tensis torque	N * m	2.5
	Tensis torque	In-libras	22
	Adscensio		De Laudate Rail en (LX) DCCXV (35mm) per ieiunium clip fabrica
	Nexus		De summo et deorsum

Principium operandi

Et operating principium electronic genus RCCB fundatur in principiis electro inductione et current pondus. Cum tempus et nulla linea excursus in circuitu sunt unbalanced, i.e. RELICTUM current existit, in current Transformer intra RCCB et deprehendere hoc unbalance et generate correspondentes signum. Hoc signum postquam processionaliter electronic circuitu, erit trigger actum release mechanism, ita quod circuitus ruptor cito interficiam off circuitu.

Principalis features

High sensibility: electronic rccbs possunt deprehendere valde parva RELICTUM excursus, plerumque minus quam 30ma vel etiam minus.

Fast actio: Cum RELICTUM current deprehenditur ad excedunt ad excedendum valorem, et RCCB agere statim ad interficiam off in circuitu et ne accidentia.

Tutus et reliable: RCCB aduersus Electronic components et microprocessor technology providere altius reliability et stabilitatem.

Securus ut install et ponere: electronic rccbs plerumque habere compacta structuram et simplex wiring, faciens ea facile ad install et ponere.

Application missionibus

Electronic RCCBs late in variis condicionibus electrica praesidium requiritur, comprehendo sed non limitatur ad:

Residentialibus et commercial aedificia: solebat praesidio electrica apparatu et personalis salutem, ne electrica concursu accidentia et electrica ignes.

Industrial productio lineas: solebat praesidio electrica apparatu ut Motors et Transformers a normalis operationem, ne apparatu damnum et downtime debitum ad leakage et cultro.

Publica facilities: ut hospitalium, scholarum, libraries et aliis locis, solebant ut tutum operationem electrica apparatu et tutum usum electricity ab pertinentibus.
