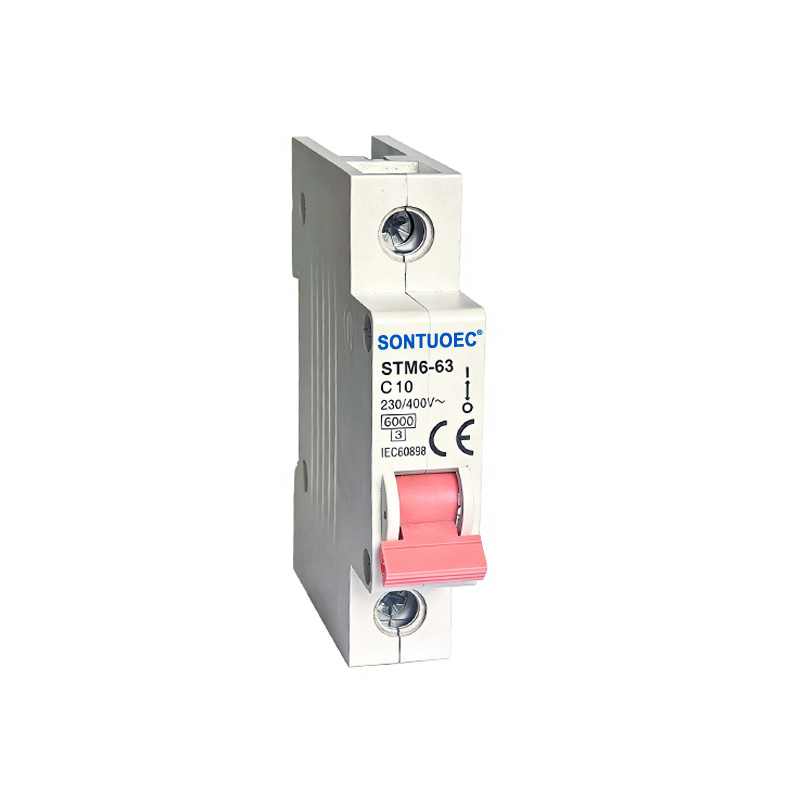

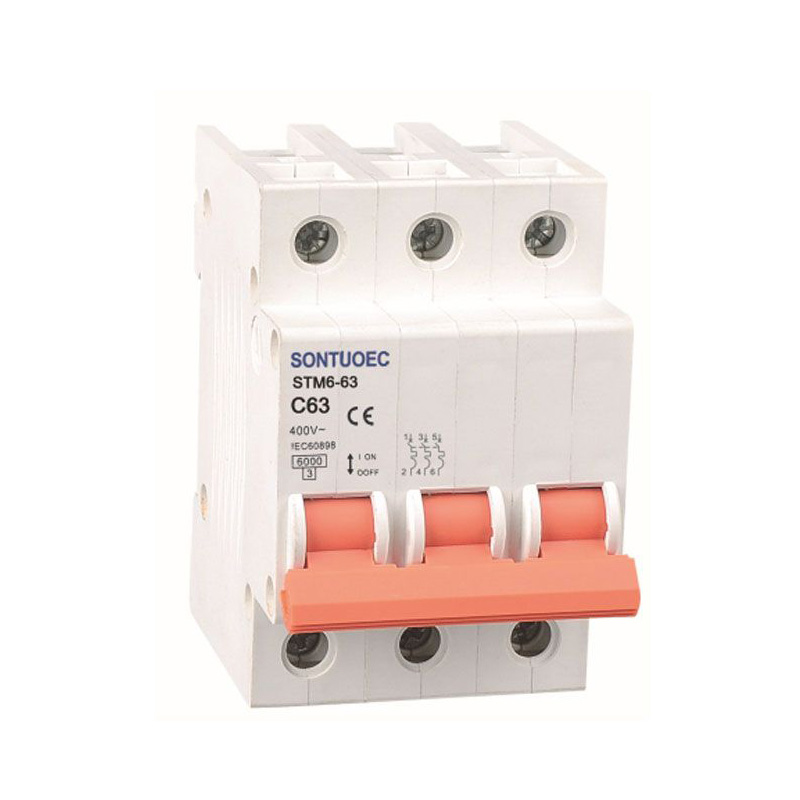

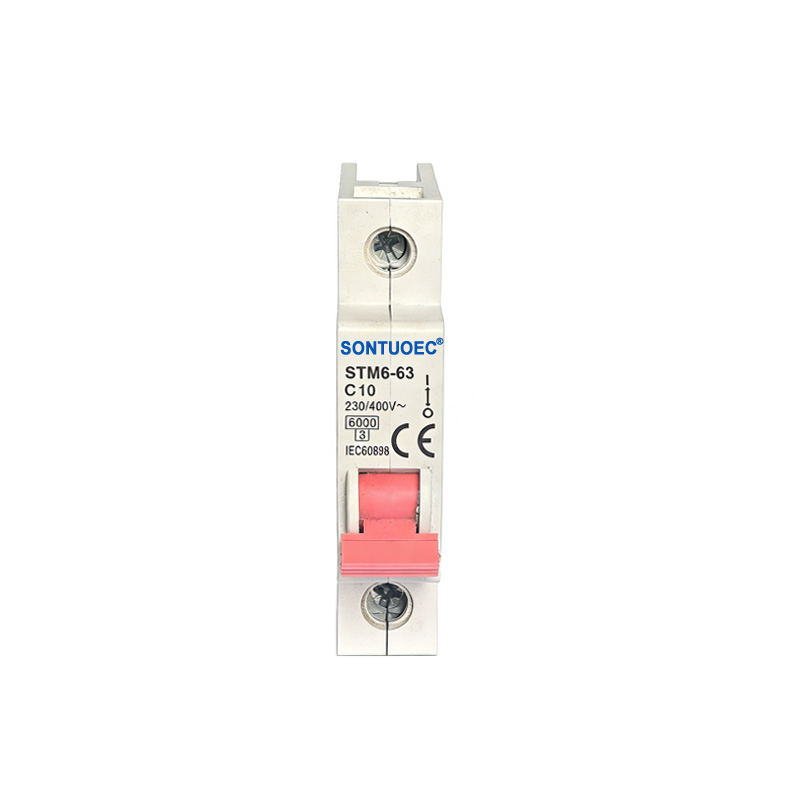

Sontuoec Stm6-63 6ka Miniature Circuit Breaker 230V MCB

SONTUOEC unus e praebitorum Sinensium/opificum specialiter in productione variarum adjumentorum parvarum electricarum STM6-63 seriei altae capacitatis fractionis mini ambitus ruptor adhibetur in AC 50/60Hz, aestimata intentione 230V 3, 4 poli 400V, currenti ad 63A aestimavit pro onere et brevi circumigendo tutelam quam pro infrequentia commutatione sub normali casu. Late adhibetur ad industriam, commercialem et domesticam. Productum hoc ad regulam IEC60898 conformatur.

Model:STM6-63

Mitte Inquisitionem

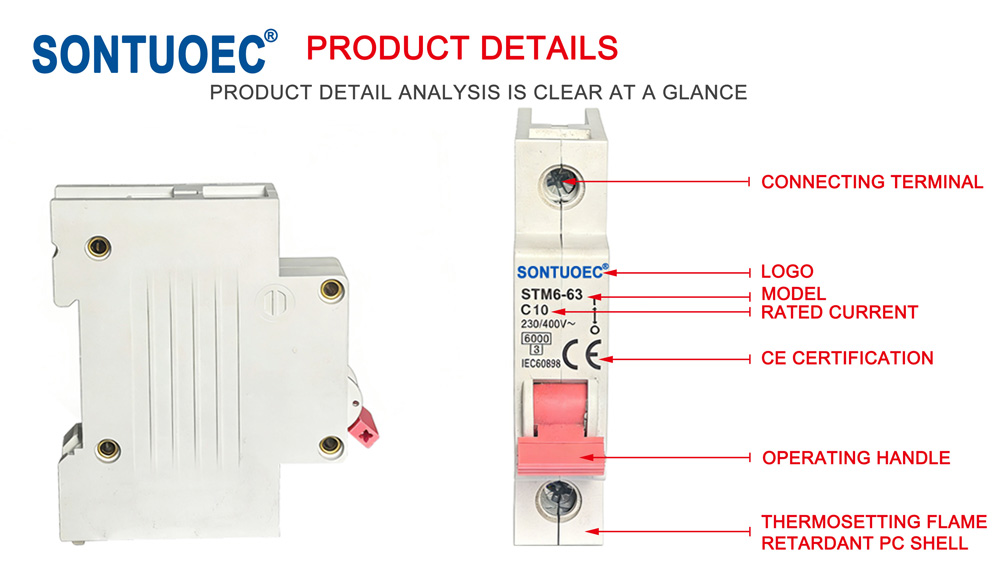

depictio producti

Formularium:

Originis loco:	Liushi, ueqing, Wenzhou, Zhejiang, China
Nomen notam:	SONTUOEC, STUOEC, SONTUNE, SONTUOC, WZSTEC
Product nomen:	Miniature Circuit Breaker / MCB
Typus:	Mini
Exemplar Number:	STM6-63
Ratum Brevis Circuit Capacitas lcu (V)	B, C, D
Ratum Voltage:	230V/400VAC
Ratum Current:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Capacitas fractionis:	6KA
Rated Frequency:	50/60Hz
Polonorum numerus:	1P, 2P, 3P, 4P
Altitude:	≤2000m
Ambientia Temperature:	-5~40ºC
Latitudo:	18mm/Pole
Latin:	IEC60898, GB10963
Praesidium Type:	onerare praesidium, breve spatium praesidio
Labi Type:	genus scelerisque
Installation:	TH 35mm strepitus rail
Capacitas Wiring:	≤25mm²
Max Operatio Frequency:	1A-32A, 240 40A-63A, 120
